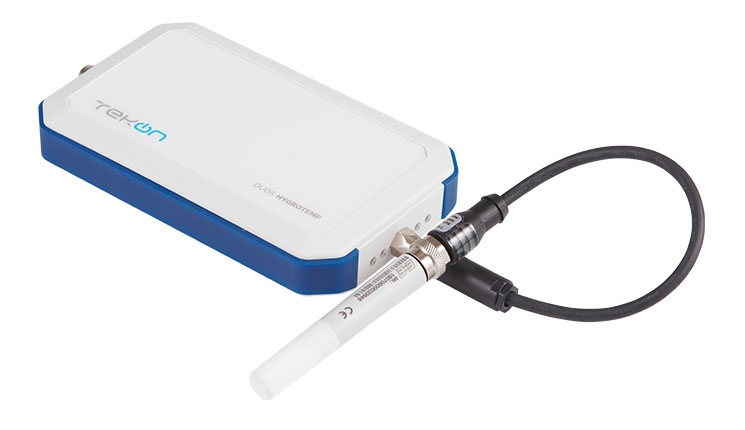

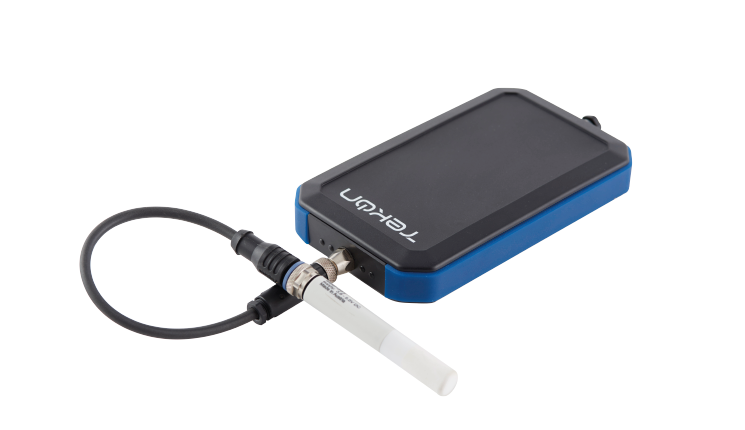

DUOS HYGROTEMP - Wireless Transmitter
Ref.: PA164520110 / PA164520120 / PA164520140 / PA164520130 / PA164520510
868 MHz
915 MHz
Humidity
Temperature
-40°C to 60°C
-40°C to 60°C
- Dual probe: external temperature and humidity + internal temperature;
- Up to 4 Km communication distance (LoS) with 128-bit AES encryption;
- Multi-hop mesh network with self-forming, self-healing and self-optimizing features;
- Battery voltage and wireless link quality (RSSI) monitoring;
- Low power and long battery life;
- Extreme operating temperature range -40ºC to 60ºC and IP67 protection;
- Simple and intuitive USB configuration via Tekon Configurator (free software).
* external probe not included
| Radio specifications | |||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|||||||||||||||||||||||
| Wireless Network | |
|---|---|
| Maximum Devices (per gateway) | 55 |
| Communication Period | 1 to 43200 seconds (configurable) |
| Internal Temperature | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|||||||||||||||
| External Temperature and Humidity | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
*Data related to the TK07-PFT5 Probe |
|||||||||||||
| Supply Voltage | |
|---|---|
| 3x1,5V AA lithium/alkaline/Ni-MH (rechargeable) batteries | |
| Protection Index | |
|---|---|
| IP67 | |
