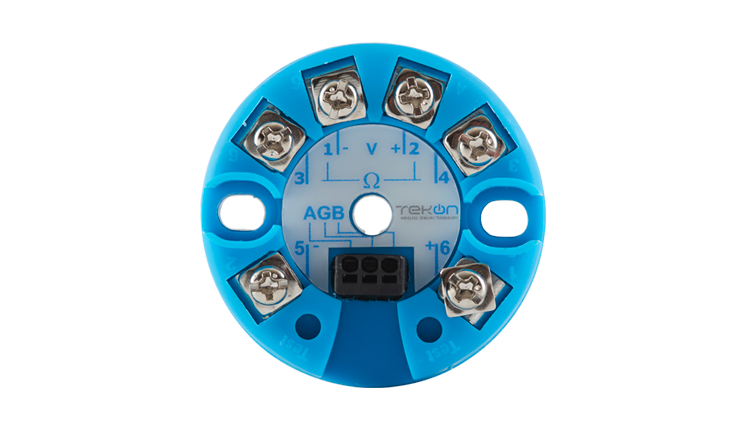

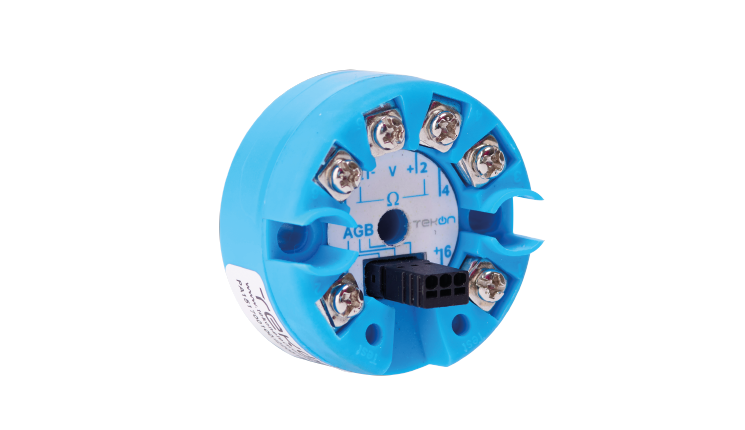

THM501 - PT100 Temperature Head Transmitter with Modbus RTU output

Ref.: PA151700100
  • PT100 sensor input;
  • 256 Modbus RTU slave addresses available;
  • High precision and accuracy with low operating temperature drift;
  • Configurable via RS485 with Tekon Configurator free software;
  • Sensor cable resistance and output current compensation;
  • Type DIN B connection head compatible.



Input
Measuring range

-200ºC a 850ºC

Response time

< 100ms

Connection

2, 3 and 4 wires

Sensor type

RTD PT100

Output
Physical layer

RS-485

Response time

< 100 ms

Baud rates

4800, 9600, 19200, 38400, 56000, 57600, 115200

Measurement Accuracy
Warm up time

< 5 min

Accuracy

< 0,1ºC

Operating Environment
Temperature range

-20ºC to 80ºC (-4ºF a 176ºF)

Casing
Protection index

IP40

Power Supply
Power consumption

< 0,3 W

Power Supply

12 to 24 V DC
