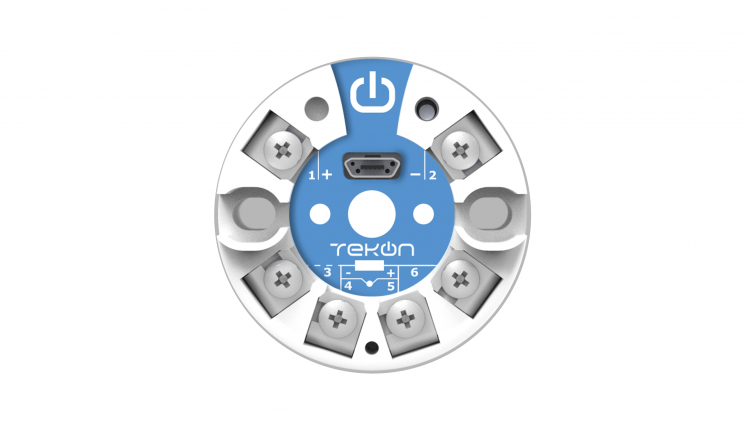

THP102-I - PT100 ISOLATED TEMPERATURE HEAD TRANSMITTER
Ref.: PA183120110
- Galvanic Isolation 1,5kV AC
- PT100 Sensor Input
- 4 to 20 mA Analog Output
- 2 Status LEDs
- High Measurement Accuracy
- High EMC Performance
- NAMUR NE 43 Fault Compliant
- Configurable over PC (Tekon Configurator Software)
| Input | |
|---|---|
| Sensor type | PT100 |
| Connection |
1 Resistance Thermometer (RTD) in 3-wire system |
| Units |
ºC |
| Sensor Current |
200 μA |
| Output | |
|---|---|
| Output Signal | 4 to 20 mA |
| Power Supply (UAUX) |
12 to 24 VDC |
| Max. Load |
(Uaux - 12) / 0,021A |
| Sample cycle |
<200ms |
| Protection | Against reversed polarity - Surge protection |
| Operating Environment | |
|---|---|
| Ambient temperature range |
-40ºC to 80ºC |
