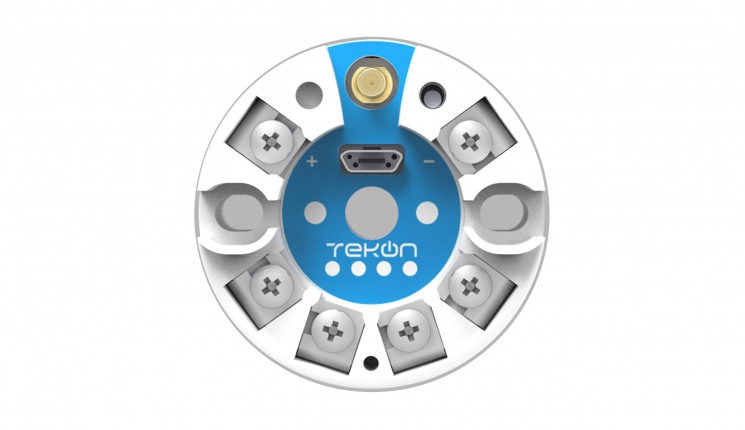

PLUS TWPH-1UT - Temperature Wireless Transmitter

Ref.: PA164510510
868 MHz
868 MHz
915 MHz (Coming soon)
915 MHz (Coming soon)
  • 30ºC to 80ºC
  • Up to 4km communication distance (LoS)
  • Universal Sensor Input
  • 6 Status Leds
  • Ultra low power mode
  • Multi-hop Mesh Network
  • Operating Mode
  • Site Survey Feature
Radio Specifications
Range

4Km LoS (2.5mi)

Frequency Band

868.050 to 869.950MHz

Number of Channels

16 (configurable)

Reception Sensivity

-97 to -110 dBm

Transmit Power

25 to 27 dBm

Encryption method

AES 128 (Advanced Encryption Standard)

Antenna gain

+3dBi

Input
  RESISTANCE THERMOMETER (RTD) THERMOCOUPLES (TC)
Sensor type PT100 J, K, N, R, S, T
Open-circuit monitoring Always active (cannot be disabled)
Short-circuit monitoring Always active (cannot be disabled) Not available
Wireless Network
Maximum Devices

55

Maximum Hops

13

Communication Period

1 to 43200 seconds (configurable)

Supply Voltage
Range

5 to 24V DC

Accuracy

±100mV

Operating Environment
Operating Temperature

-20 to 80ºC (-4 to 176ºF)

Digital Measuring Accuracy
Resistance Thermomether (RTD)
Sensor Range ºC (ºF) Digital Accuracy ºC (ºF)
PT100 -200 to 850 (-328 to 1562) 0,1 (0,18)
Accuracy (According to IEC 61298-2)
Inaccuracy -0,093%; 0,317%
Max. Error 0,292%
Hysteresis -0,051%
Non-repeatability 0,054%
Thermocouples (TC)
Sensor Range ºC (ºF) Digital Accuracy ºC (ºF)
J -210 to 1200 (-346 to 2192) 0,5
K -230 to 1370 (-382 to 2498) 0,5
N -200 to 1300 (-328 to 23725) 0,5
R

-50 to 1760 (-58 to 3200)

0,5
S -50 to 1760 (-58 to 3200) 0,5
T -200 to 400 (-328 to 752) 0,5
