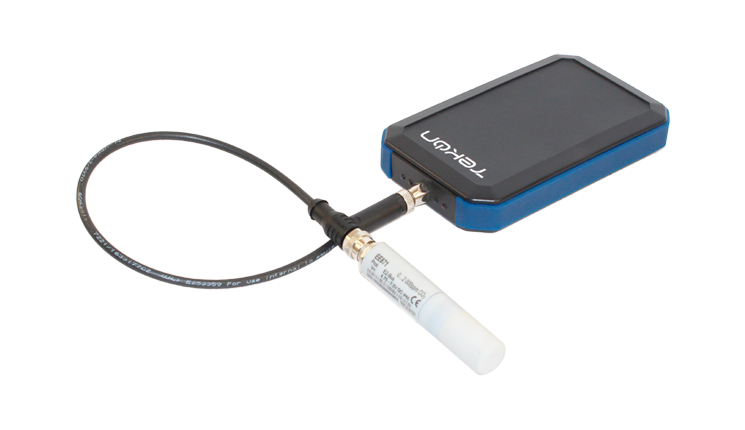

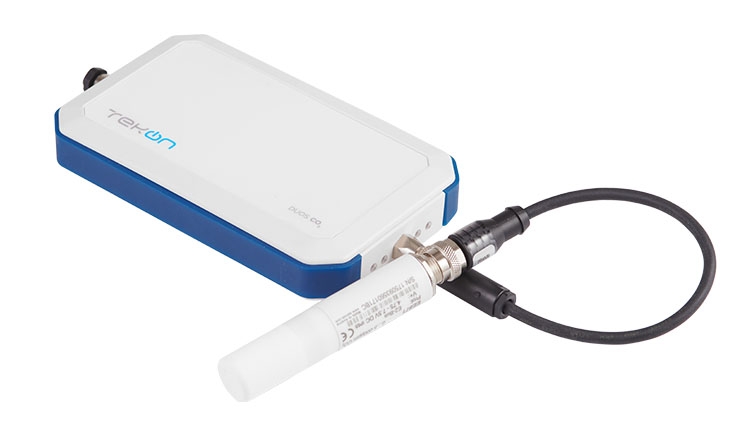

DUOS CO2 - Wireless Transmitter

Ref.: PA160411110 / PA160411120 / PA160411130 / PA160411140 / PA160412410
868 MHz
868 MHz
915 MHz
915 MHz
Carbon Dioxide
Carbon Dioxide
  • Dual probe: external CO2 and internal temperature;
  • Up to 4 Km communication distance (LoS) with 128-bit AES encryption;
  • Multi-hop mesh network with self-forming, self-healing and self-optimizing features;
  • Battery voltage and wireless link quality (RSSI) monitoring;
  • Low power and long battery life;
  • Extreme operating temperature range -40ºC to 60ºC and IP67 protection;
  • Simple and intuitive USB configuration via Tekon Configurator (free software).

* external probe not included


Radio Specifications
  868MHz 915MHz
Range* Up to 4 Km LoS, 27 dBm (500mW)
Radio Transmit Power  0 to 27 dBm  8 to 27 dBm
Radio Receiver Sensivity  -97 to -110 dBm
Frequency  868 to 869 MHz  902 to 928 MHz
Radio Channels 16 50
Encryption method AES 128 (Advanced Encryption Standard)
*Range depends on the environment and line of sight. Always verify your wireless network's range by performing a Site Survey.
Wireless Network
Maximum Devices (per gateway)


Communication Period

1 to 43200 seconds (configurable)

Internal Temperature
  868MHz 915MHz
Range -40 to 60ºC
Resolution 0,1 ºC
Accuracy Typical: ± 0.25ºC / Maximum ± 0.5ºC
CO2 Measurement
Acquisition Range


Precision at 25ºC and 1013 mbar

+- 50ppm + 3% measured value

Operating Temperature

-40ºC to 60ºC (0-100%RH non-condensing)

Supply Voltage
3x3.6 AA lithium batteries
3 years of estimated battery life*

* Considering a communication period of 10 minutes, and maximum transmit power (27dBm) at 25 ºC with PNEVEER14505M batteries.

Protection Index
