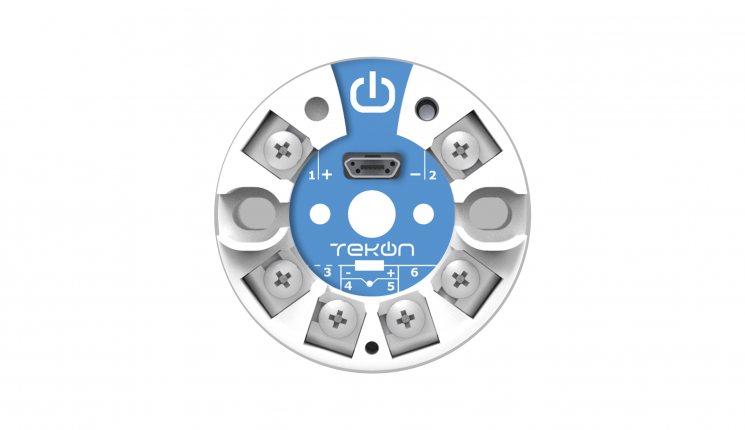

THT202-I - THERMOCOUPLE TEMPERATURE HEAD TRANSMITTER

Ref.: PA183120210
  • Galvanic Isolation 2Kv AC
  • Thermocouple Sensor Input (E,J,K,N,R,S,T)
  • Wide Measurement Range
  • 4 to 20 mA Analog Output
  • 2 Status LEDs
  • High Measurement Accuracy
  • In line loop current measure pads
  • NAMUR NE 43 Fault Detection
  • Configurable over PC (Tekon Configurator Software)
INPUT Thermocouple (TC)
Sensor type

Thermocouples (E, J, K, N, R, S T)

Open-circuit monitoring

Always active ( cannot be disabled)

Cold junction compensation (CJC)

Integrated resistance thermometer

OUTPUT
Output Signal

4 to 20 mA

Power Supply (UAUX)

9 to 30 VDC

Max. Load

(Uaux 9) / 0.022 A

Sample cycle

< 1s

Protection

Against reversed polarity

Surge Protection

Operating Environment
Ambient temperature range

-20 to 80ºC (-4 to 176ºF)
